Python: Random Squares

October 24, 2019 Leave a comment


Random Squares Art
Subject: Python, Graphics and simulation

In This project say we have a Square (10 x 10 cm) the square has four corners labeled as (a, b, c, d) as in figure i.



then we select a random corner (c or d) [assume it is c] then we select an angle (ang) of rotation between (10, 45), and we draw another square positioning (a) on the (c) and rotating it with (ang) anticlockwise as figure ii.



Now if we repeat this two steps ..
S1. Selecting a random corner (c or d).
S2. Selecting a random rotation angle between (10, 45). and draw the square.
let’s see what we may have as a random art generator.




Python Code for Random Squares Art
Codes to select corner (c or d)
def select_c_or_d():

if random.randrange(0,2) == 0 :

x = cdpos[0][0]

y = cdpos[0][1]

else:

x = cdpos[1][0]

y = cdpos[1][1]

t.setheading(0)

t.right(random.randrange(rotmin,rotmax)*f)


Codes to draw the Square (c or d)
def d_square(w,x1,y1):

t.goto(x1,y1)

t.pendown()

t.forward(w)

t.right(-90)

t.forward(w)

# save corner c position

cdpos.append([t.xcor(),t.ycor()])

t.right(-90)

t.forward(w)

# save corner d position

cdpos.append([t.xcor(),t.ycor()])

t.right(-90)

t.forward(w)

t.penup()

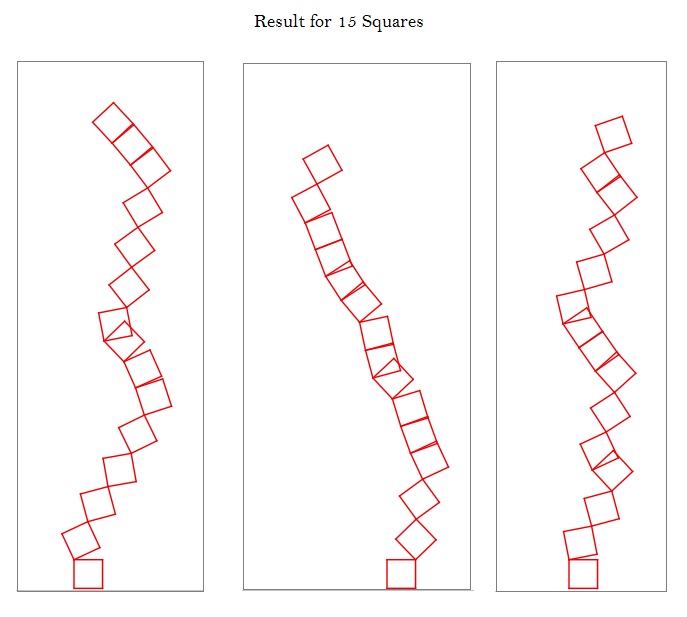

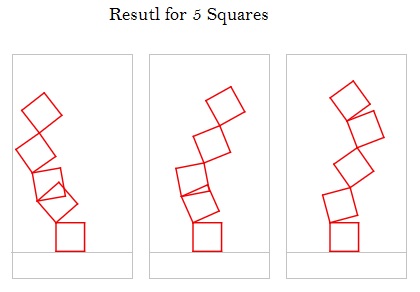

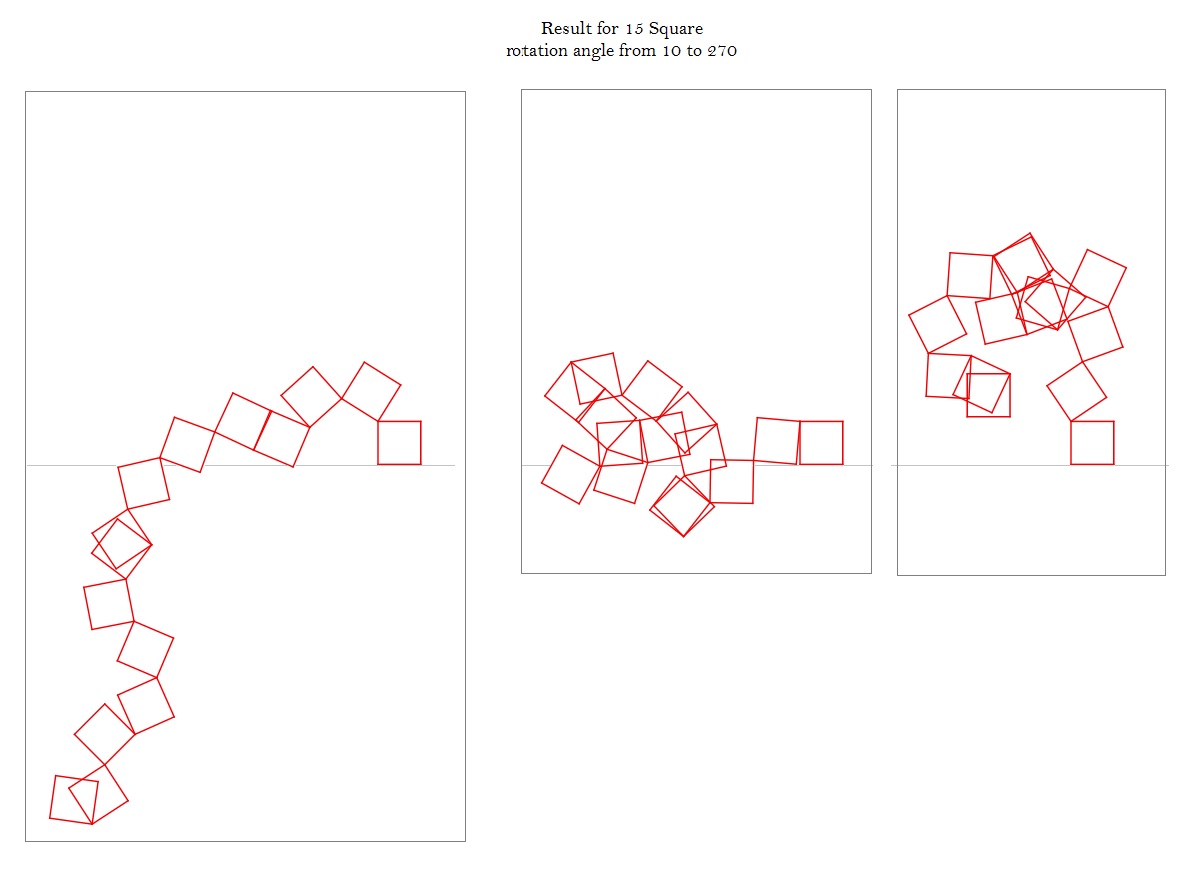

I notes that if we increase the number of Squares, we start to have some interesting results.

.. Have Fun ..



To Download my Python code (.py) files Click-Here
