[NOTE: To keep the code as simple as we can, We WILL NOT ADD any user input Varevecations. Assuming that our user will Enter the right inputs.]

In one of last week posts I mentioned that i am working on a New Project, and that we may start doning a “Properties Maintenance System” also I Draft-Down some points and brain-storming session [READ THE ARTICLE HERE]. In this Part -1 of the Properties Maintenance System

In this Post, we will see the Tables and the Fields, and will write the first Function to create the Data-Base and the tables, also Inserting the Zero-Records and the (some) Data in-to lookup tables. Also I will try to list-down all the Functions we may write in our Application. All the codes will be available in the Download Page.

Tables and Fields

• Name: Job Status Table (job_s_t). Type: Lookup.
• Name: Payment Method Table (pay_meth_t). Type: Lookup.
• Name: Property Type Table (prop_type_t). Type: Lookup.
• Name: Maintenance Job List Table (main_job_list_t). Type: Lookup.
• Name: Properties Table (properties_t).
• Name: Maintenance Request Table (maint_request_t)
• Name: Receipt Table (receipt_t)

[Any other Table we may add more tables if we need latre]

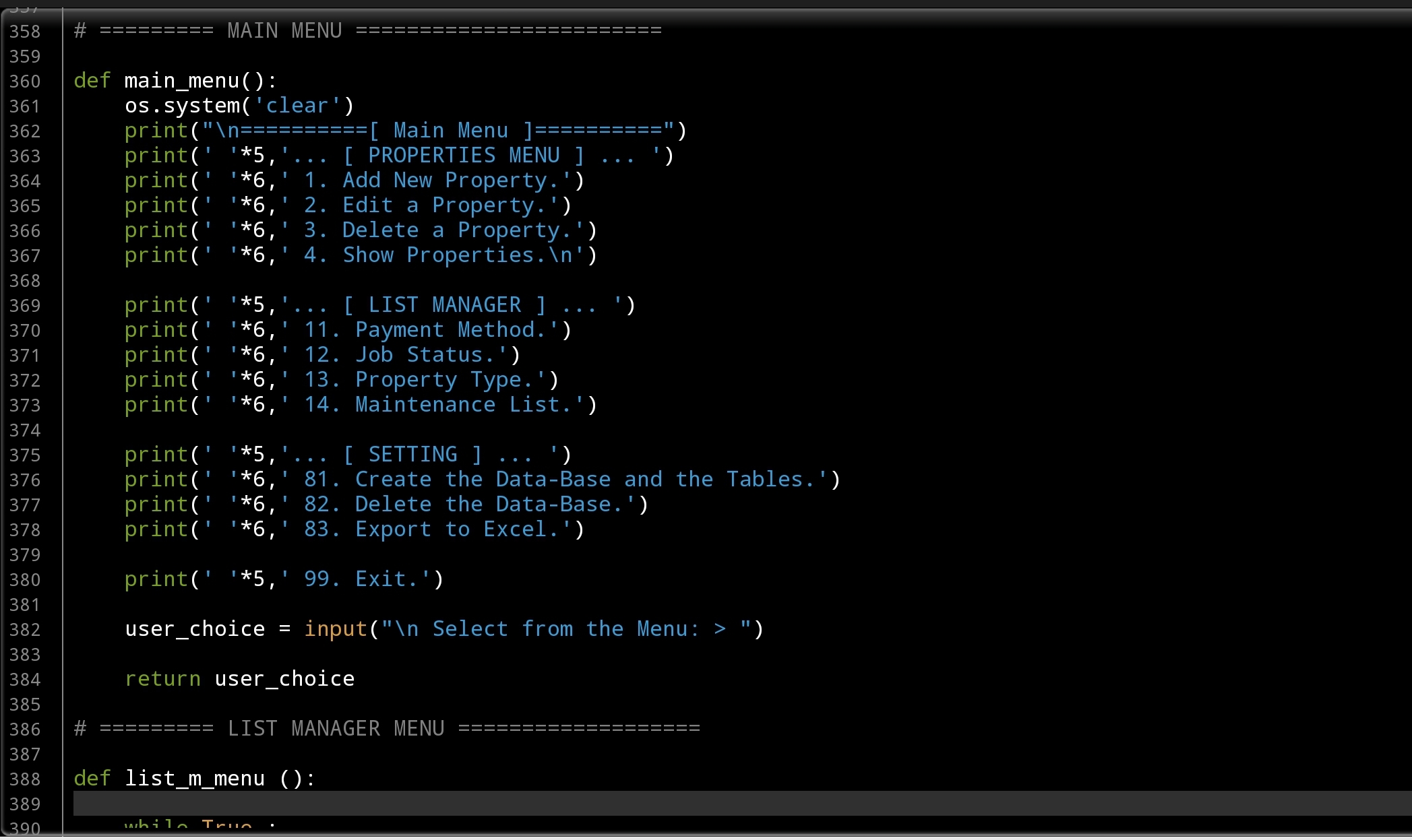

Function: Here i am listing all the Functions we will create, this list will be the Main Menu.

… [ PROPERTIES MENU ] …

• Add New Property.
• Edit a Property.
• Delete a Property.
• Show Properties.

… [ LIST MANAGER ] …

• Payment Method. [Add, Edit, Delete]
• Job Status. [Add, Edit, Delete]
• Property Type. [Add, Edit, Delete]
• Maintenance List. [Add, Edit, Delete]

… [ SETTING ] …
• Create the Data-Base and the Tables.
• Delete the Data-Base.
• Export to Excel.

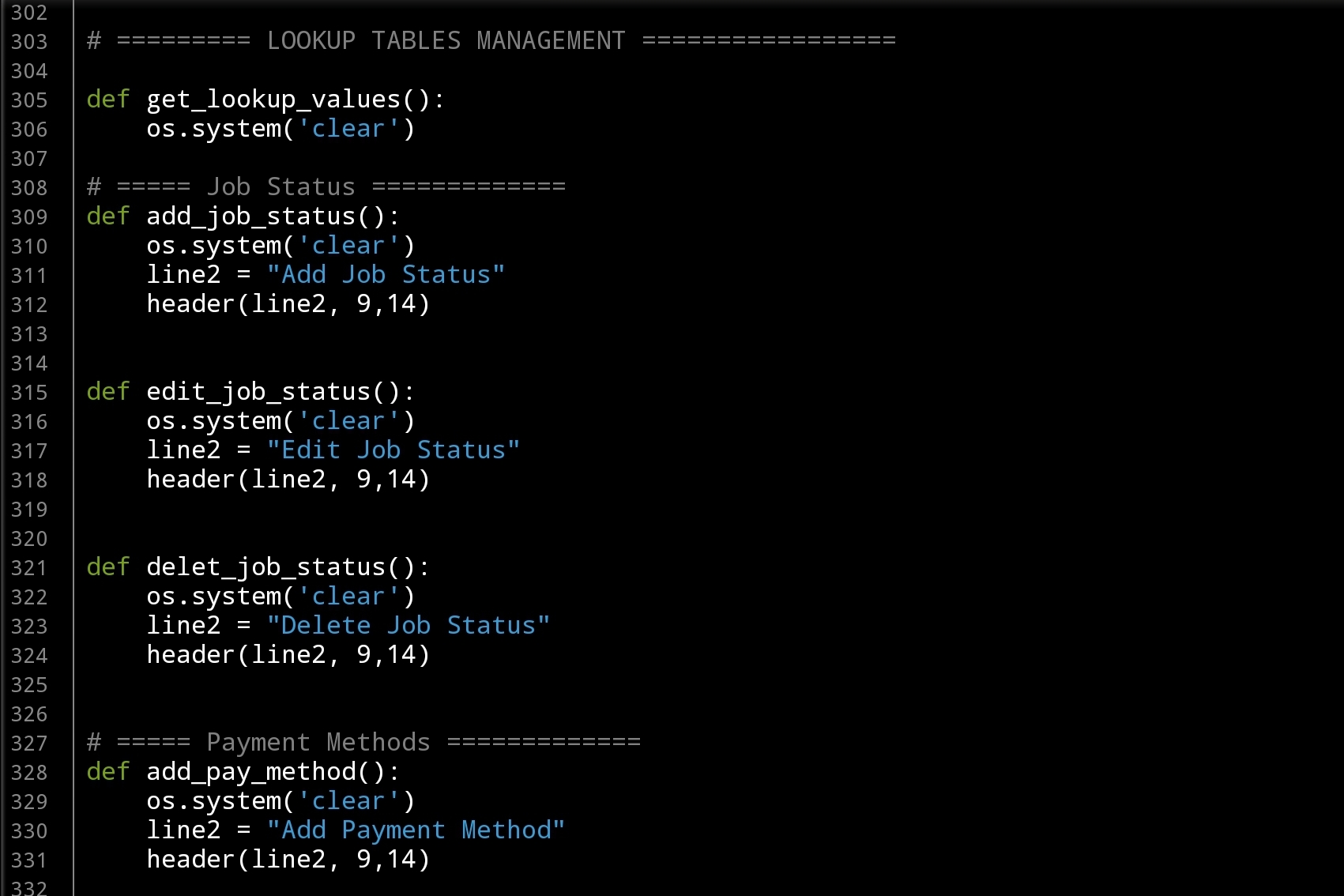

Function Exalmple: For each Function we have, this will be the template of the Function Name and the first three lines

 # Sample of: Add Job Status Function

def add_job_status():
    os.system('clear')
    line2 = "Add Job Status"
    header(line2, 9,14)  # Calling the header Function.

Table Creation and Zero-Records

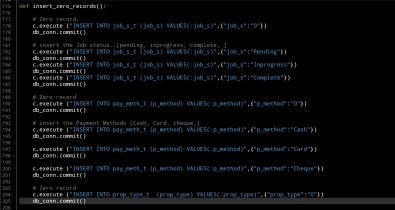

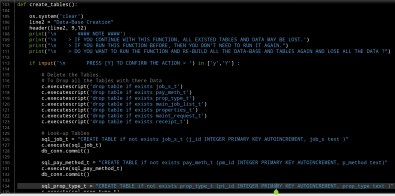

I am always start writing the ideas in the Python Editor as comments, and coding in the same time, so by the time i collect all this article the Part-1 of the project was done with Tow or Three Functions that Creating the Tables and Inserting the data into lookup-Tables. Here I am posting some screen shots of the code..

In Part-2 In Part-1 [This Article] We create the Data-Base and Tables, also Insert some Data into the lookup-tables and we create the Main-Menu Function. In Part-2 we will start writing some Functions to manage the lookup tables.

:: PMS Parts ::

..:: Have Fun with Coding ::.. 🙂

To Download my Python code (.py) files Click-Here

Follow me on Twitter..

By: Ali Radwani
